Container Internal Dimension Chart
Standard Containers
OpenTop Containers
Flatrack Containers
Flatrack Collapsible Containers
Reefer Containers
High Cube Containers
PlatForm Containers

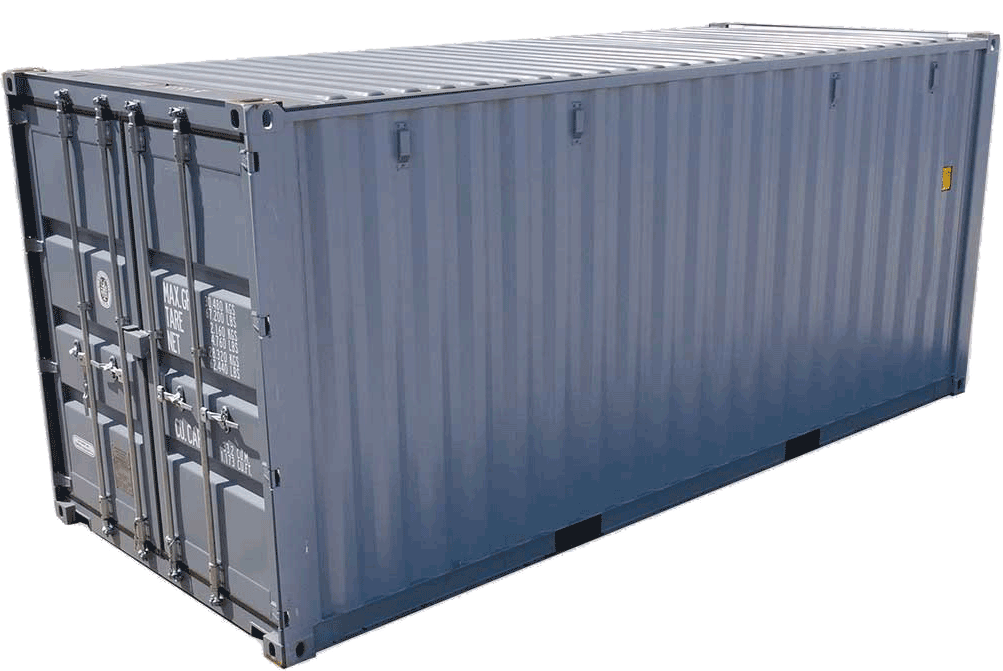

Standard Containers
| Standard 20' |  |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 19'4" | 7'8" | 7'10" | 7'8" | 7'6" | 1,172 CuFt | 4,916 lbs | 47,900 lbs | |
| 5900 mm | 2350 mm | 2393 mm | 2342 mm | 2280 mm | 33.2 CBM | 2,230 Kg | 21,770 Kg | |
| Standard 40' | |
|||||||
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 39'5" | 7'8" | 7'10" | 7'8" | 7'6" | 2,390 CuFt | 8,160 lbs | 59,040 lbs | |
| 12036 mm | 2350 mm | 2392 mm | 2340 mm | 2280 mm | 67.7 CBM | 3,700 Kg | 26,780 Kg | |

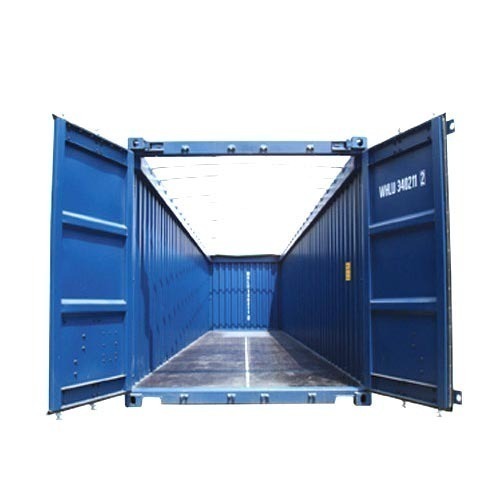

OpenTop Containers
| OpenTop 20' |  |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 19'4" | 7'7" | 7'8" | 7'6" | 7'2" | 1,136 CuFt | 5,280 lbs | 47,620 lbs | |
| 5894 mm | 2311 mm | 2354 mm | 2286 mm | 2184 mm | 32.23 CBM | 2,400 Kg | 21,600 Kg | |
| OpenTop 40' | |
|||||||
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 39'5" | 7'8" | 7'8" | 7'8" | 7'5" | 2,350 CuFt | 8,490 lbs | 58,710 lbs | |
| 12028 mm | 2350 mm | 2345 mm | 2341 mm | 2274 mm | 65.5 CBM | 3,580 Kg | 26,630 Kg | |

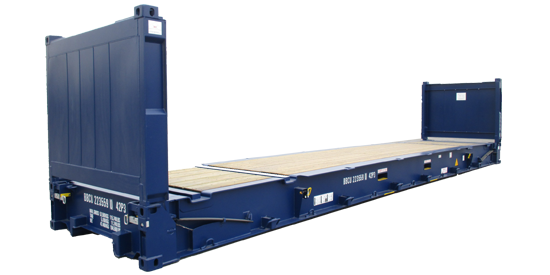

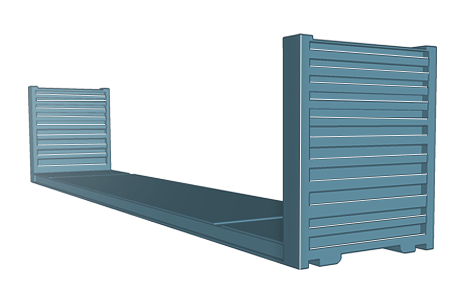

Flatrack Containers
| Flatrack 20' |  |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 18'5" | 7'3" | 7'4" | - | - | - | 5,578 lbs | 47,333 lbs | |
| 5620 mm | 2200 mm | 2233 mm | - | - | - | 2,530 Kg | 21,470 Kg | |
| Flatrack 40' |  |
|||||||
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 39'7" | 6'10" | 6'5" | - | - | - | 12,081 lbs | 85,800 lbs | |
| 12080 mm | 2438 mm | 2103 mm | - | - | - | 5,480 Kg | 39,000 Kg | |

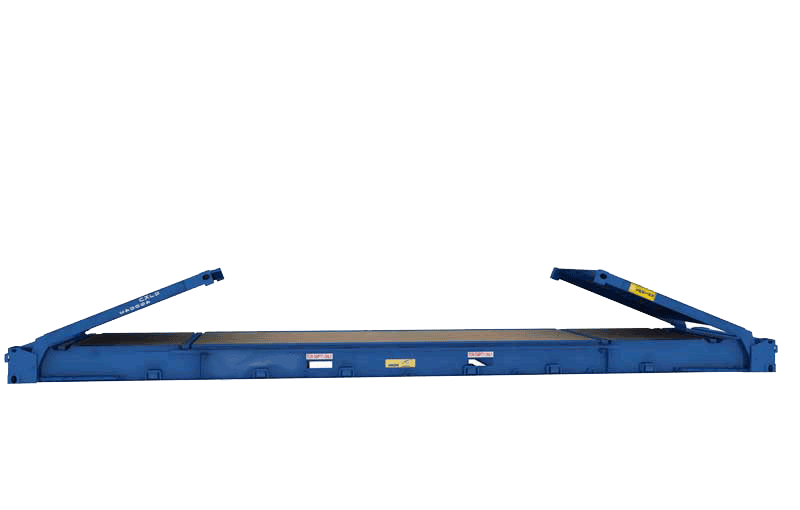

Flatrack Collapsible Containers
| Flatrack Collapsible 20' |  |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 18'6" | 7'3" | 7'4" | - | - | - | 6,061 lbs | 61,117 lbs | |
| 5618 mm | 2208 mm | 2233 mm | - | - | - | 2,750 Kg | 17,730 Kg | |
| Flatrack Collapsible 40' | |
|||||||
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 39'7" | 6'10" | 6'5" | - | - | - | 12,051 lbs | 85,800 lbs | |
| 12080 mm | 2126 mm | 2043 mm | - | - | - | 5,800 Kg | 39,000 Kg | |

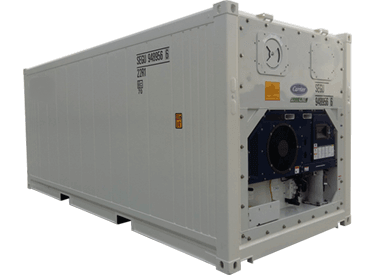

Reefer Containers
| Reefer 20' |  |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 17'8" | 7'5" | 7'5" | 7'5" | 7'3" | 1,000 CuFt | 7,040 lbs | 45,760 lbs | |
| 5425 mm | 2275 mm | 2260 mm | 2258 mm | 2216 mm | 28.3 CBM | 3,200 Kg | 20,800 Kg | |
| Reefer 40' | |
|||||||
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 37'8" | 7'5" | 7'2" | 7'5" | 7'0" | 2,040 CuFt | 10,780 lbs | 56,276 lbs | |
| 11493 mm | 2270 mm | 2197 mm | 2282 mm | 2155 mm | 57.8 CBM | 4,900 Kg | 25,580 Kg | |
| Reefer High 40' | |
|||||||
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 37'11" | 7'6" | 8'2" | 7'6" | 8'0" | 2,344 CuFt | 99,00 lbs | 57,761 lbs | |
| 11557 mm | 2294 mm | 2500 mm | 2294 mm | 2440 mm | 66.6 CBM | 4,500 Kg | 25,980 Kg | |

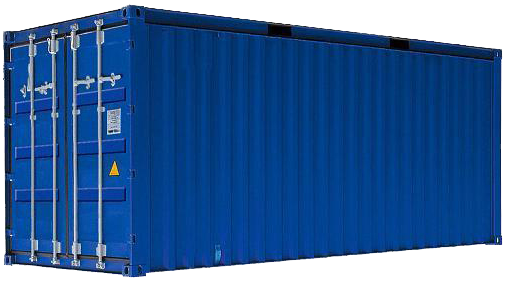

High Cube Containers
| High Cube 40' |  |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 39'5" | 7'8" | 8'10" | 7'8" | 8'5" | 2,694 CuFt | 8,750 lbs | 58,450 lbs | |
| 12036 mm | 2350 mm | 2697 mm | 2338 mm | 2565 mm | 76.3 CBM | 3,970 Kg | 26,510 Kg | |

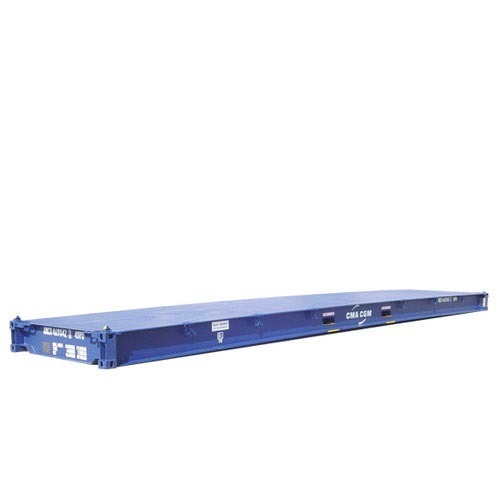

PlatForm Containers
| PlatForm 20' |  |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 19'11" | 8'0" | 7'4" | - | - | - | 6,061 lbs | 52,896 lbs | |
| 6058 mm | 2438 mm | 2233 mm | - | - | - | 2,750 Kg | 24,000 Kg | |
| PlatForm 40' | |
|||||||
| Inside Length | Inside Width | Inside Height | Door Width | Door Height | Capacity | Tare Weight | Maxi Cargo | |
| 40'0" | 8'0" | 6'5" | - | - | - | 12,783 lbs | 86,397 lbs | |
| 12180 mm | 2400 mm | 1950 mm | - | - | - | 5,800 Kg | 39,200 Kg | |
